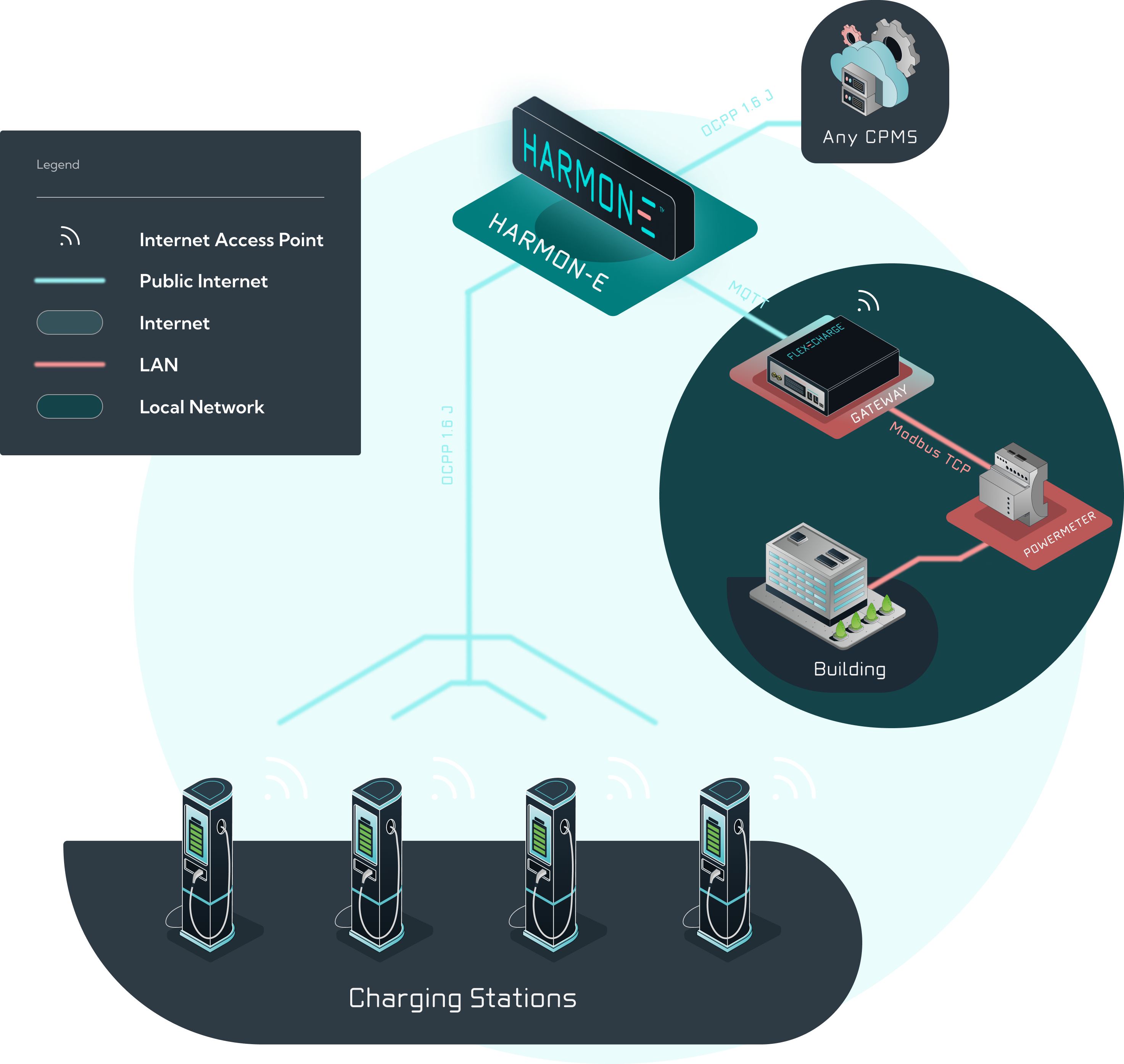

This guide will take you through the installation of the Gateway Connect in a setup where Internet access for the power meter is provided by your own router.
High-level takeaways
- You use our own router (e.g. Teltonika RUT240) to provide Internet access to the Gateway and the power meter
- You fit each charging station with their own SIM card and bring them onto HARMON-E via their own OCPP URL
Before you start
- You have setup your router and you have control over its network settings
- You have a laptop with an Ethernet port and a browser (e.g. Google Chrome)
- You have an Ethernet cable
1. Install the power supply
Install the power supply MEAN WELL MDR-60-24 according to the manufacturer's specifications:

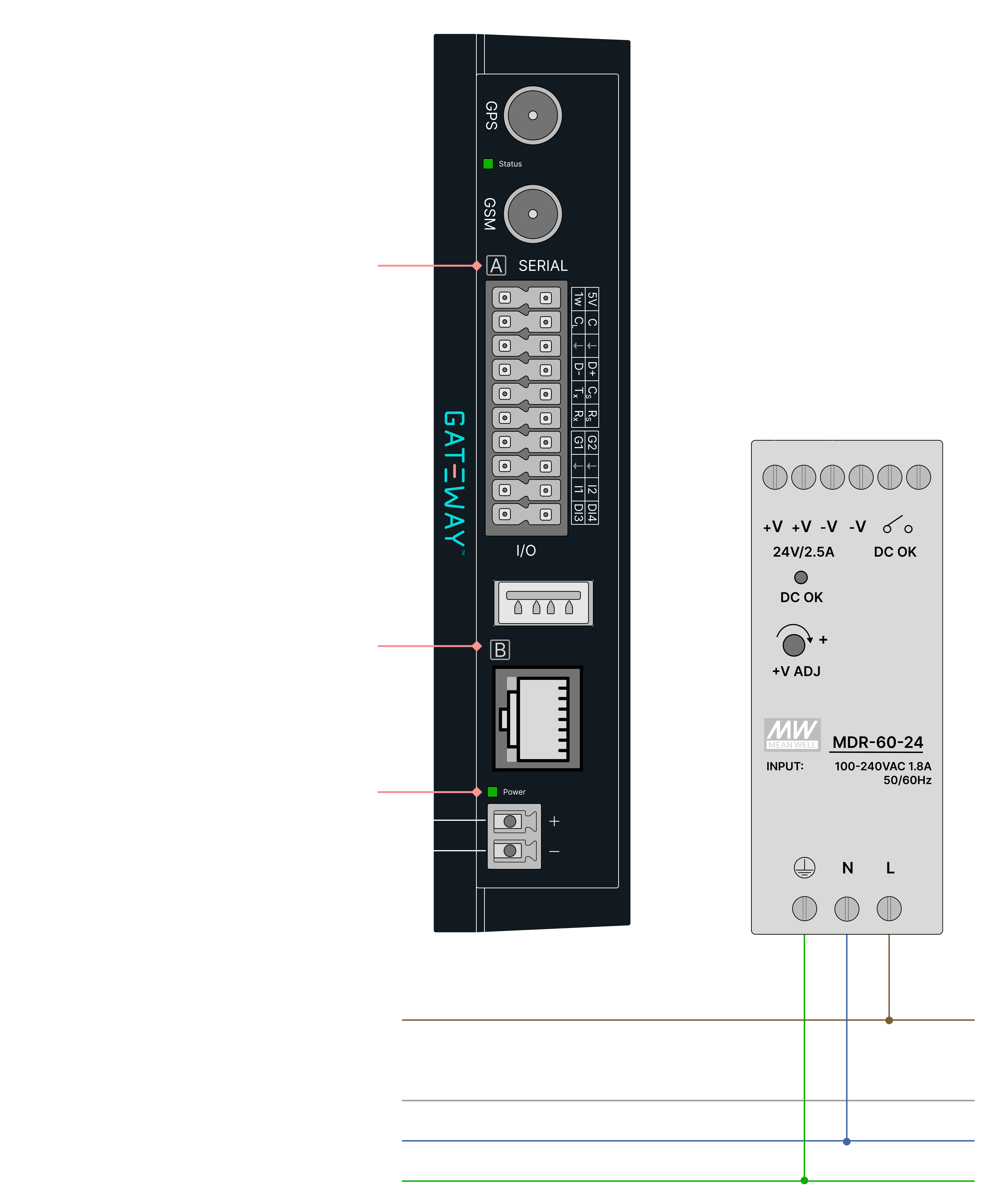

2. Connect the power supply
Connect the power supply to the connector labeled with + and -. Don't mix up the polarity!
The Gateway is equipped with reverse polarity protection, but will remain inactive, if the polarity is incorrect.
