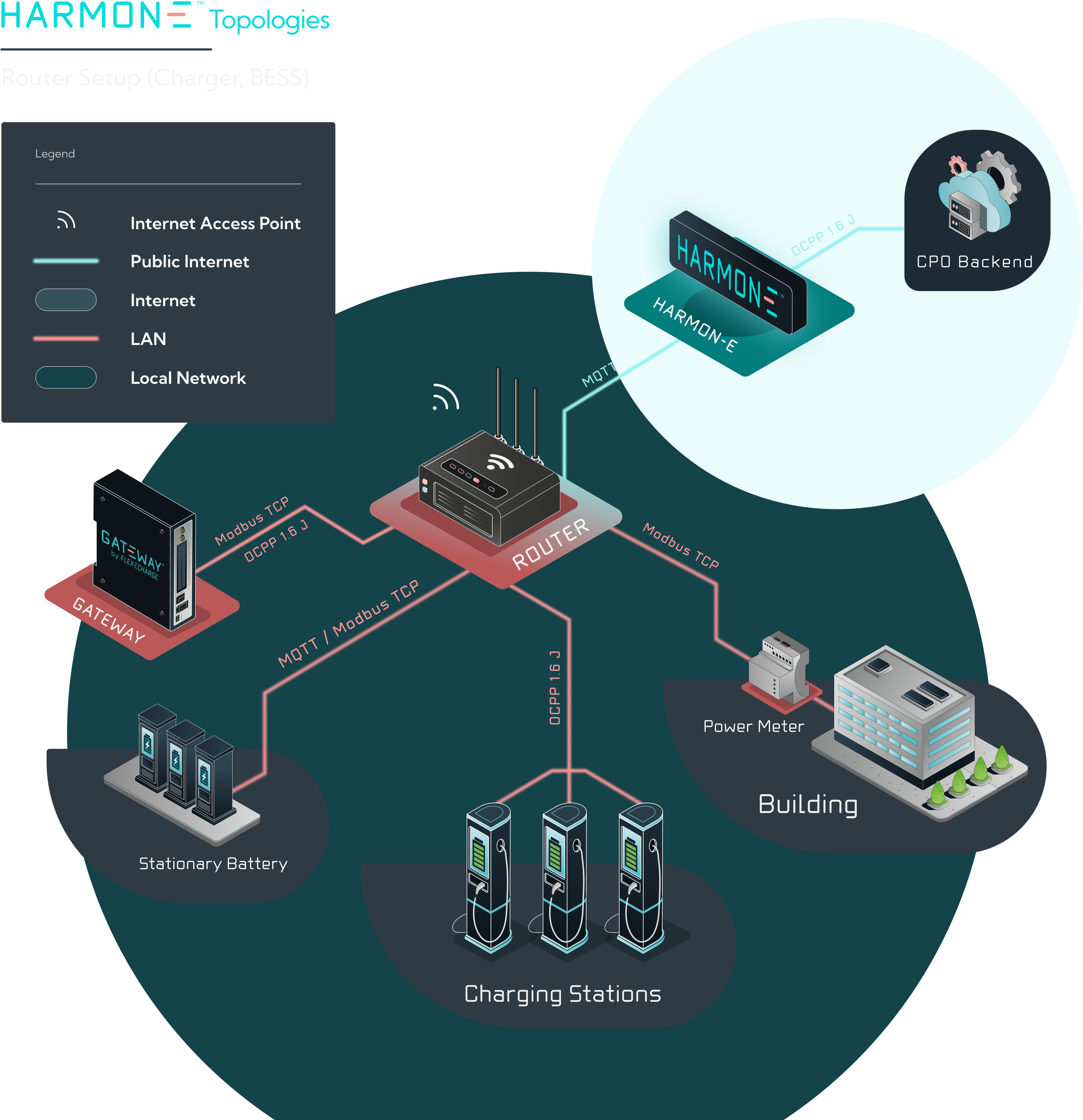

This guide will take you through the installation of the Gateway Connect in a setup where Internet access is provided by your own router.
High-level takeaways
- You use our own router to provide Internet access (e.g. Teltonika RUT955)
- Do not link the Gateway to the local network before you have configured a fixed IP
Before you start
- Ensure that the chargers, power meters and batteries are connected to the same local network
- You have a laptop with an Ethernet port and a browser (e.g. Google Chrome)
- You have an Ethernet cable
1. Install the power supply
Install the power supply MEAN WELL MDR-60-24 according to the manufacturer's specifications:

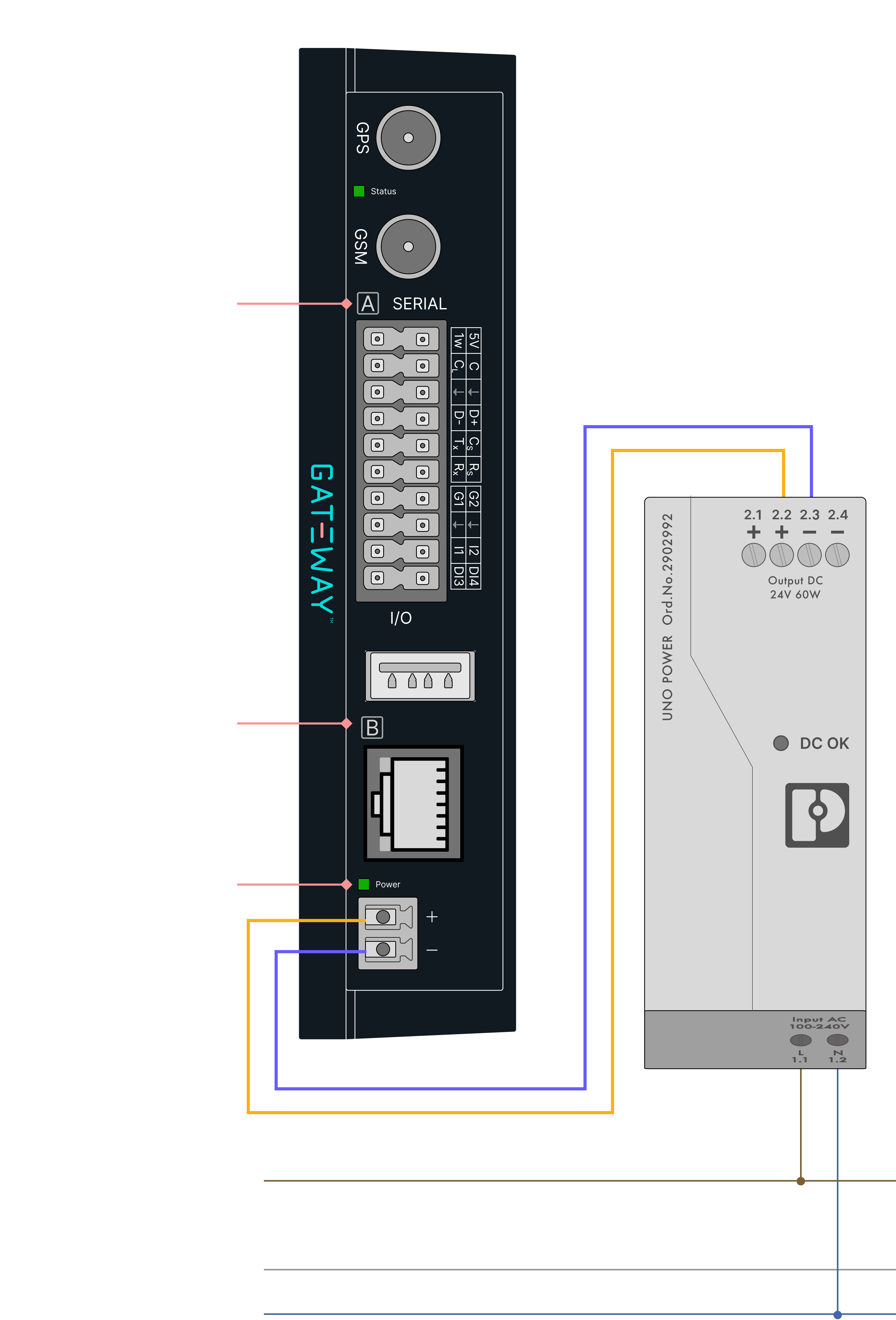

3. Connect the power supply
Connect the power supply to the connector labeled with +
and -
. Don't mix up the polarity!
The Gateway is equipped with reverse polarity protection, but will remain inactive, if the polarity is incorrect.
